NYIT | ARCH 401 - Design V | Fall 2020 | Professor Robert Cody + Beyhan Karahan
CYNCLOSURE was considered for the 2021 AZ Awards for Design Excellence - A+ Student Work Award
"Cynclosure is a community center located in Astoria, NY. The goal of the project was to provide the community with a safe, multi-functional, and environmentally safe community building for use year round. The goal of the form and organization of the project was to lead users into the building via green space and physical form and have them experience the building as they rose towards the top. The central axis acts as a distribution and circulation core. The elevated green space ties the roof plane back to the ground. Moveable walls allow users to tailor the use of the interior in response to all seasons and create a blurred line between interior and exterior. A mix of passive and active systems works in tandem to create an energy efficient and environmentally friendly project."

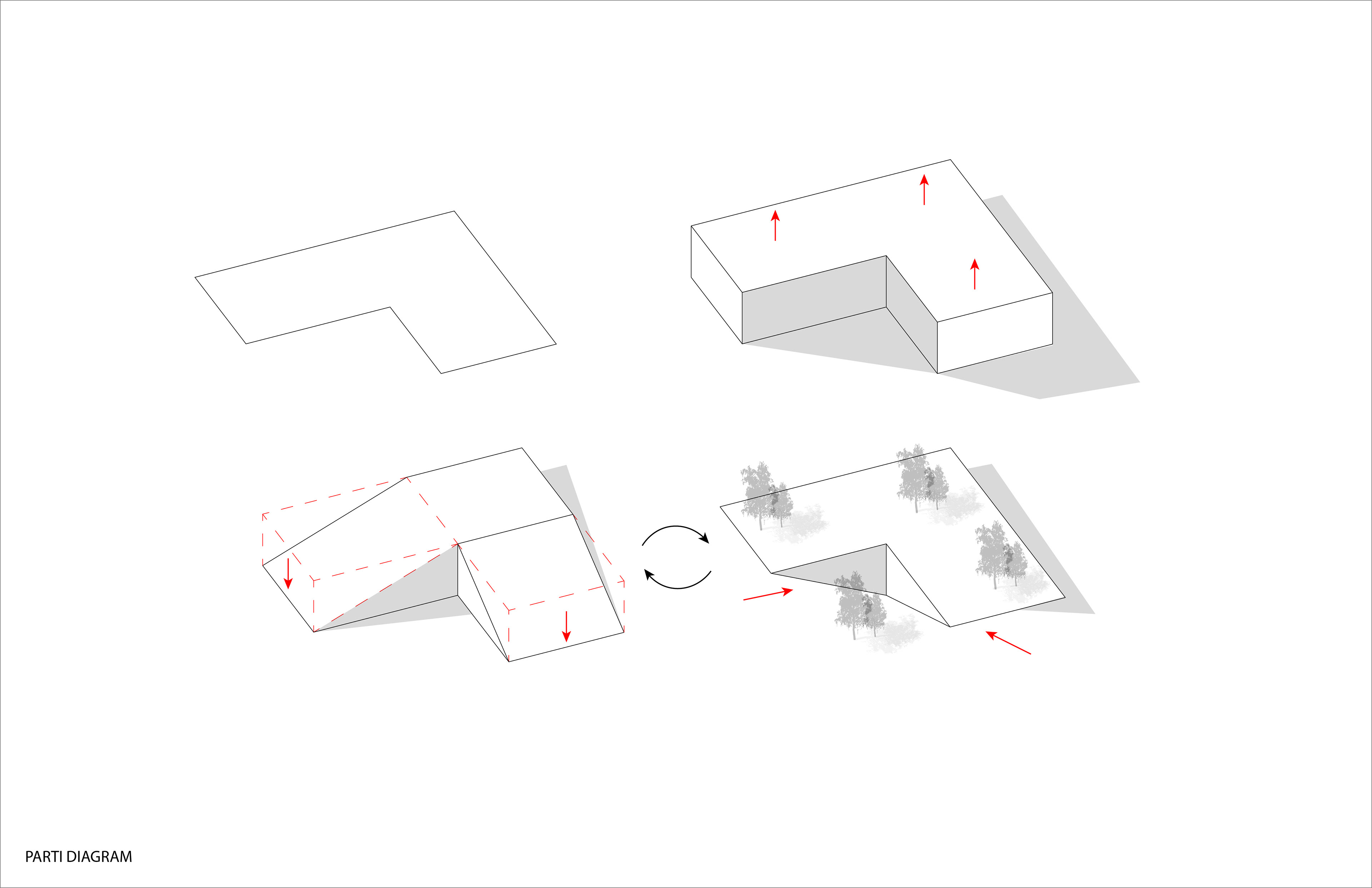

Parti Diagram

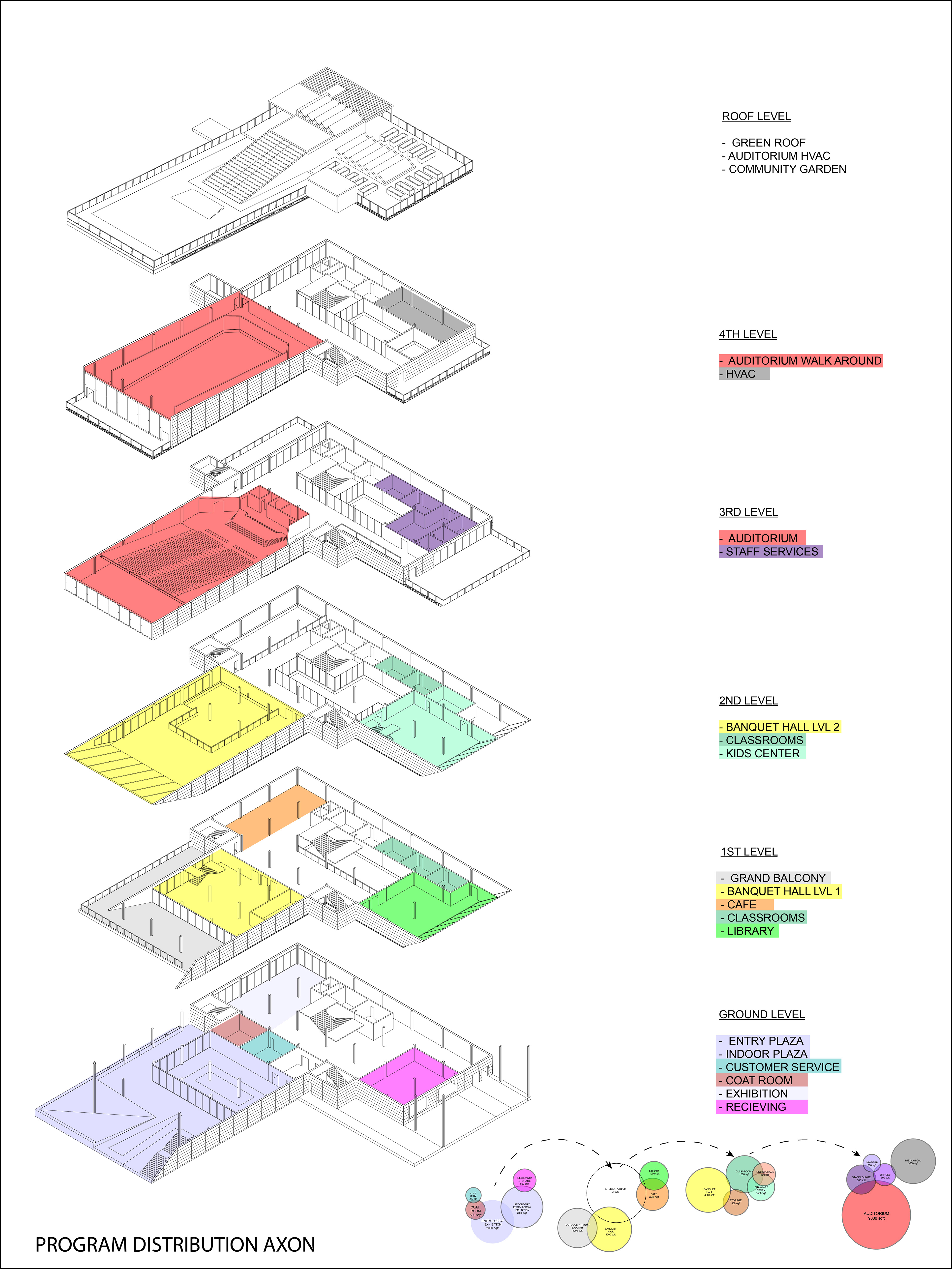

Final Program Distribution Diagram

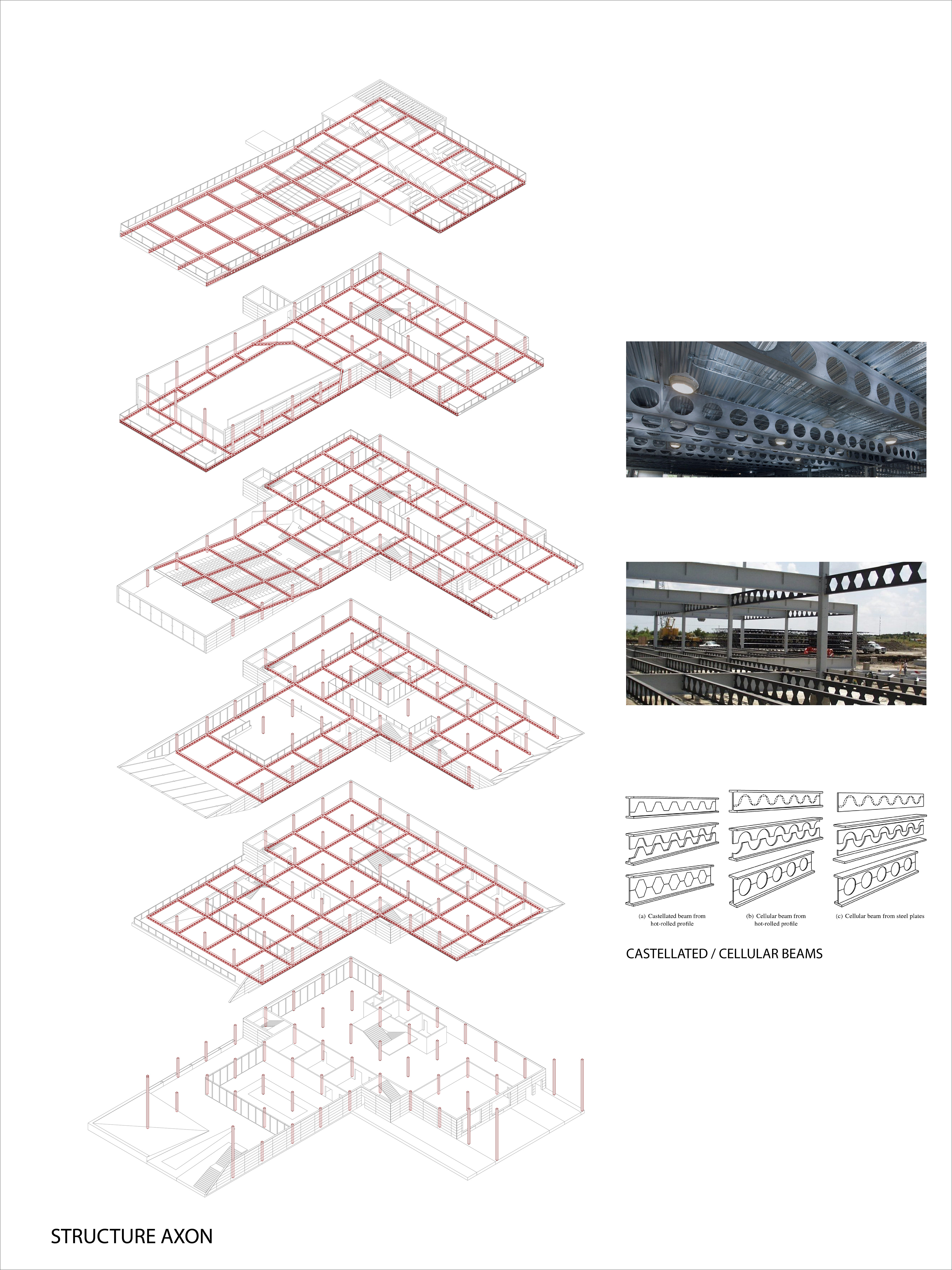

Structure Diagram

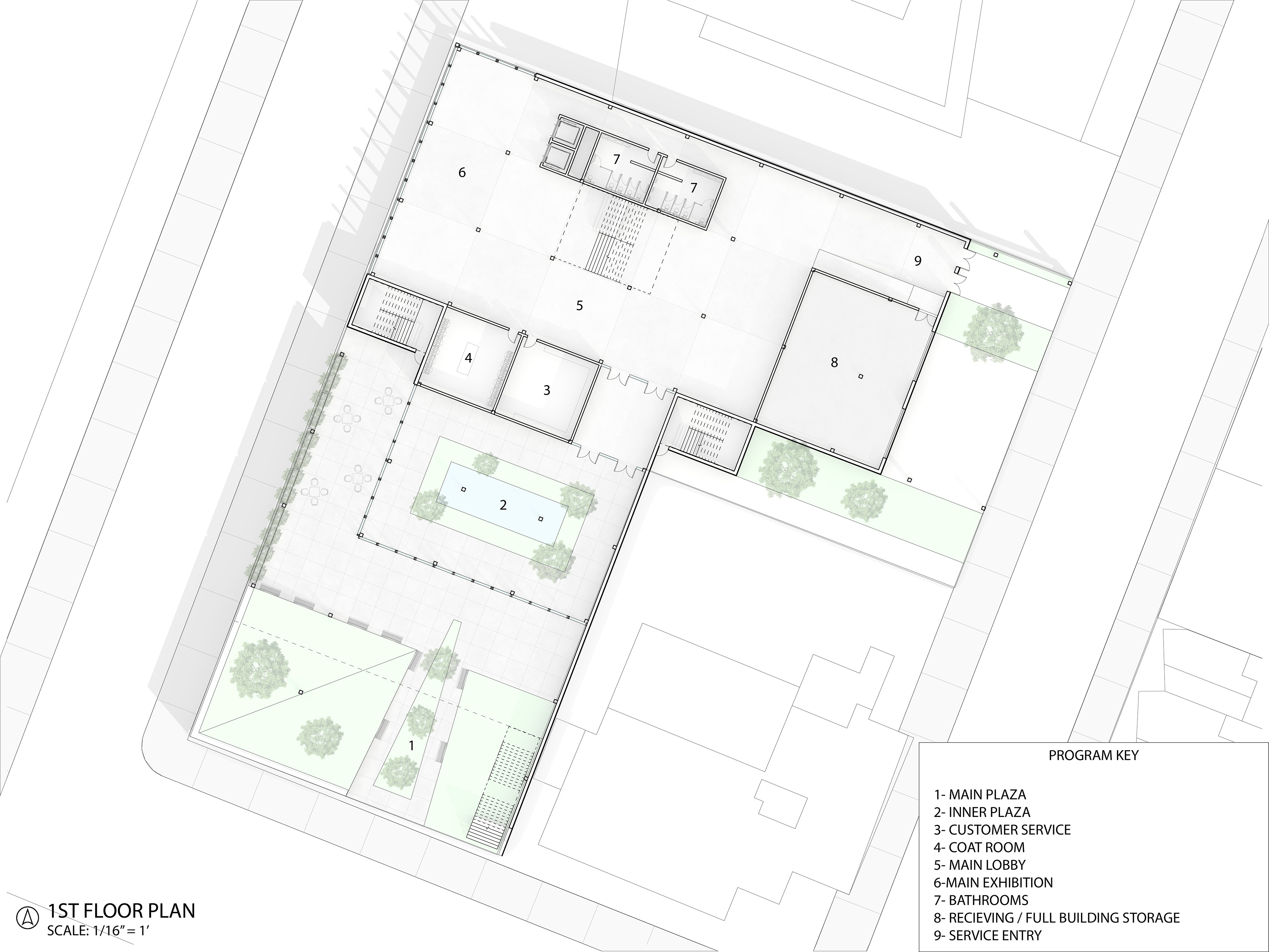

1st Floor Plan

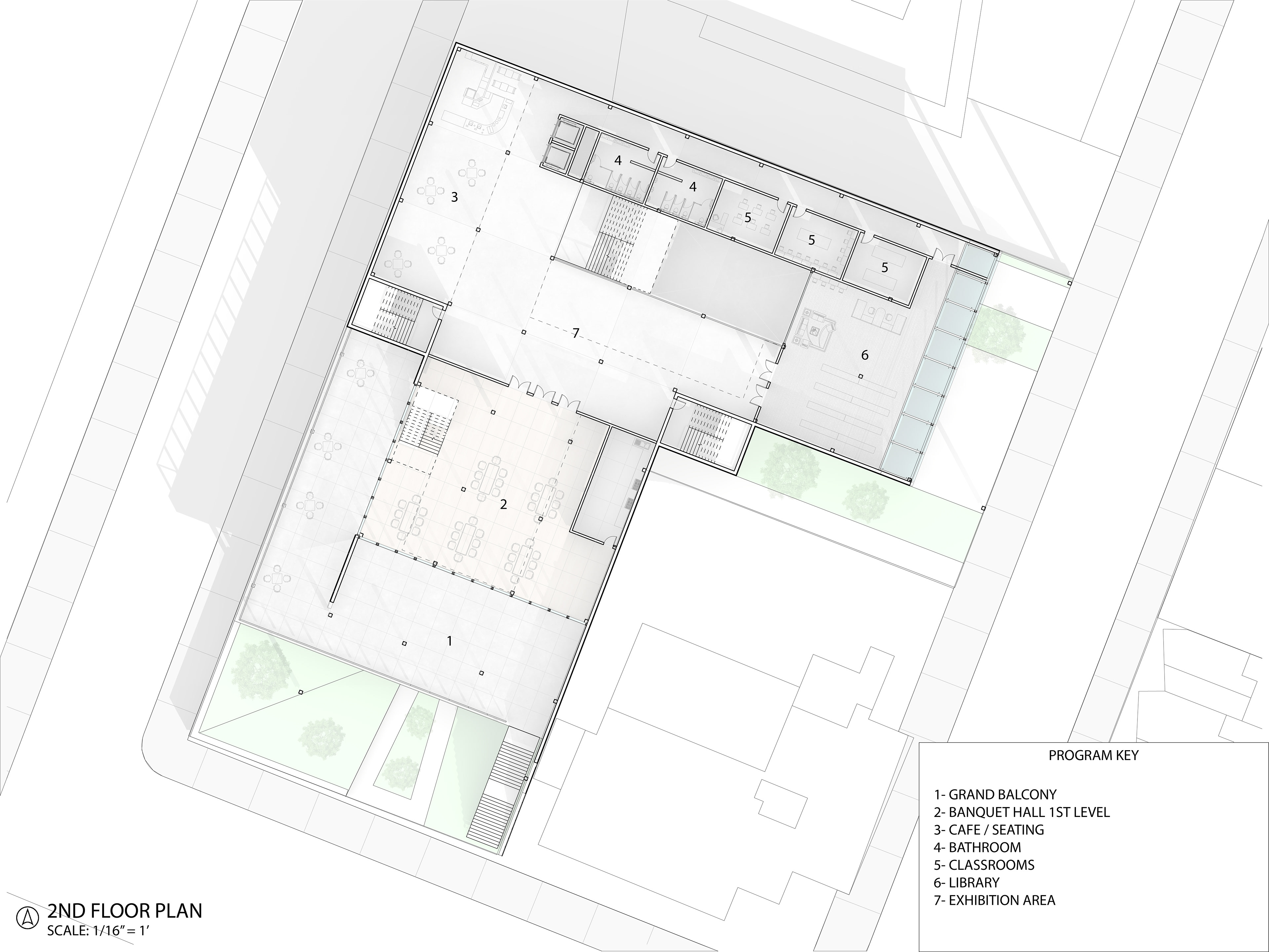

2nd Floor Plan

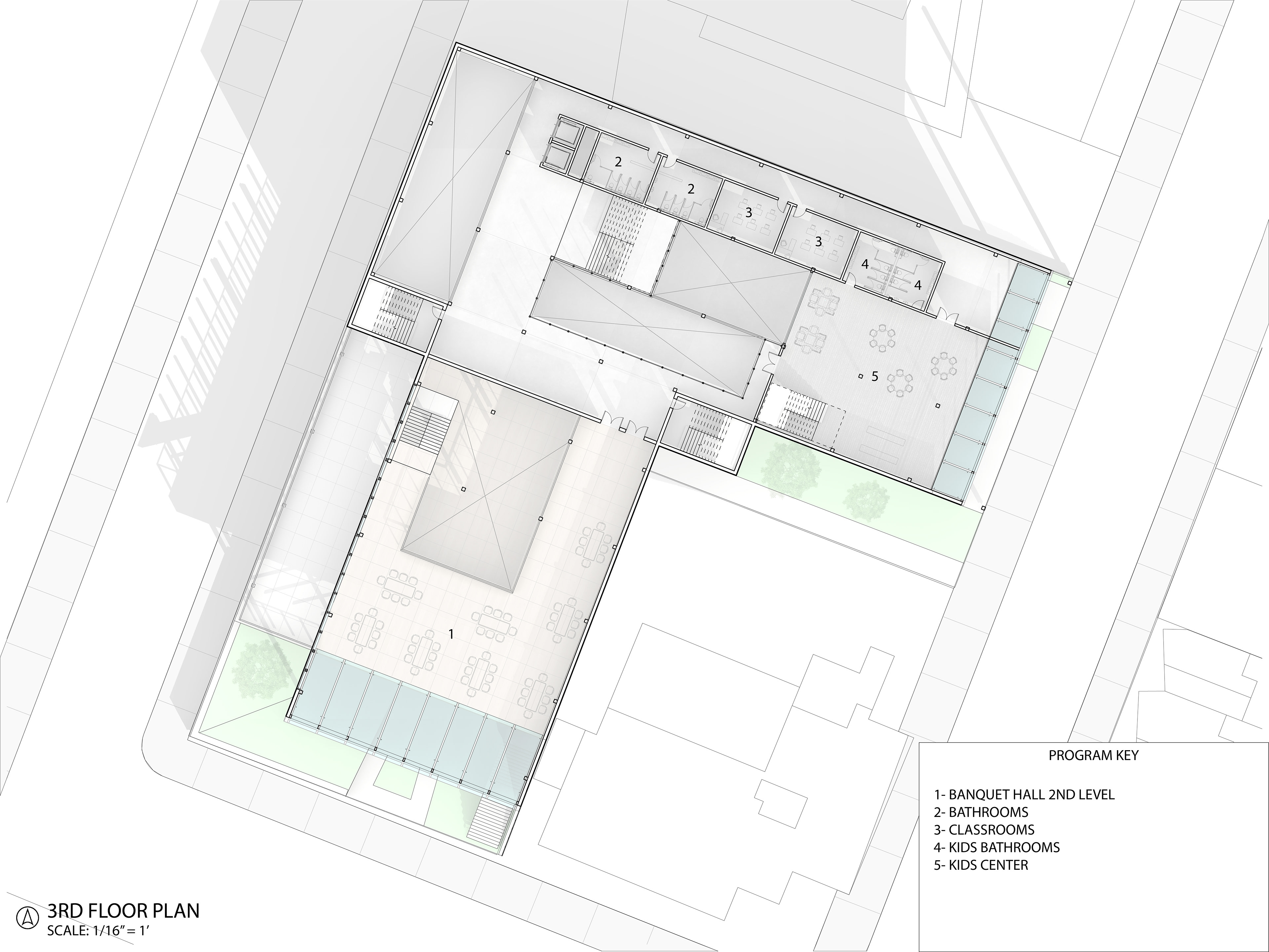

3rd Floor Plan

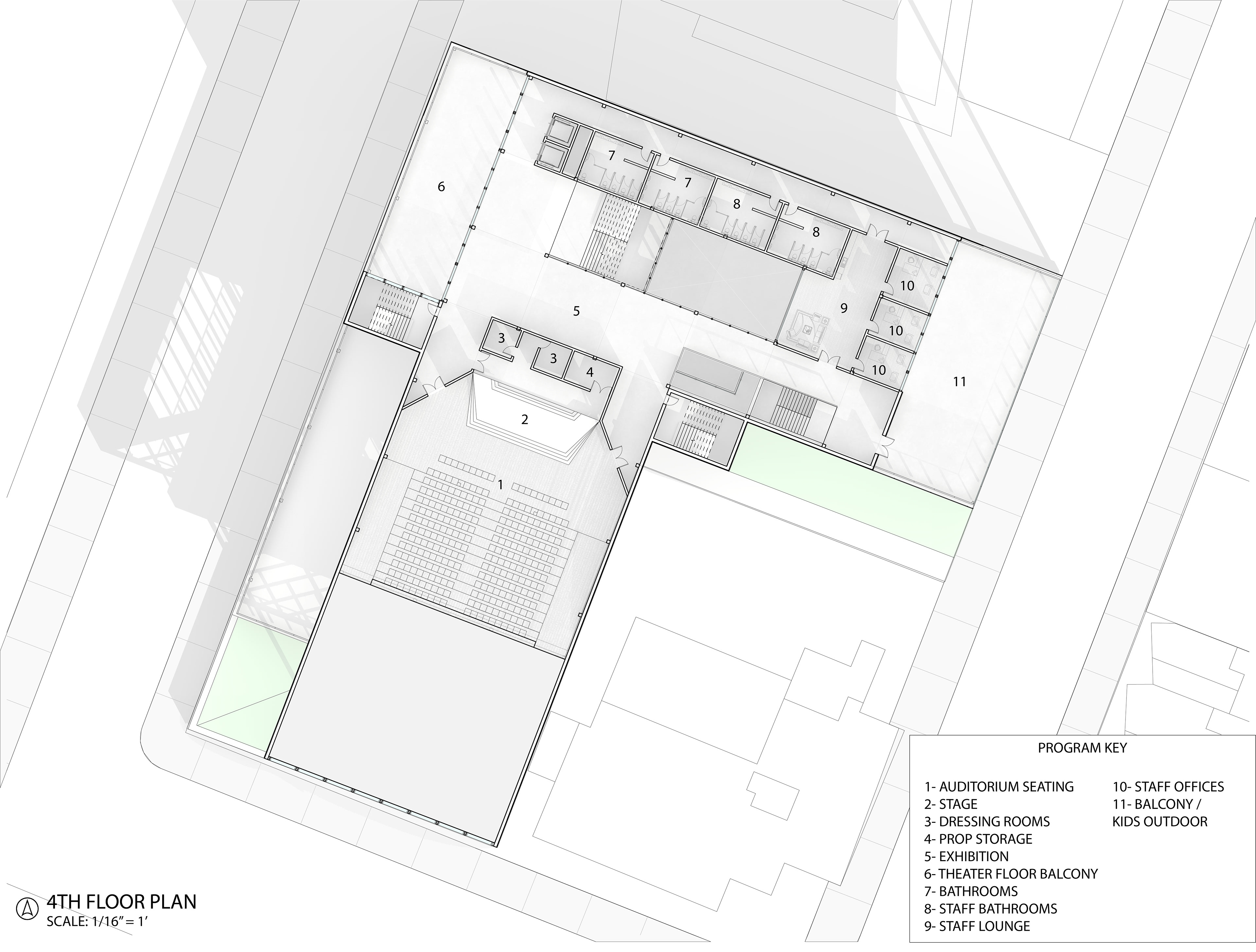

4th Floor Plan

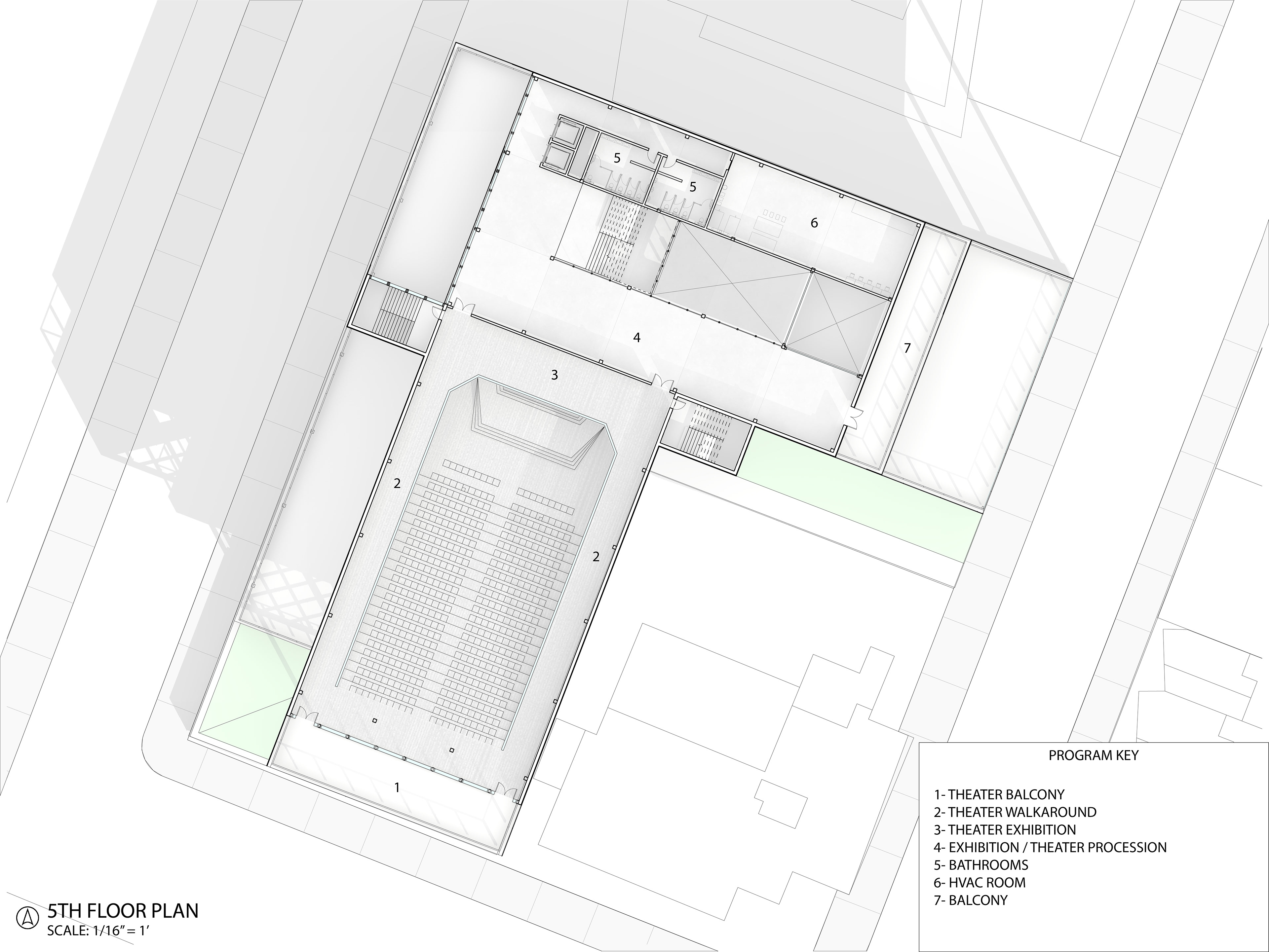

5th Floor Plan

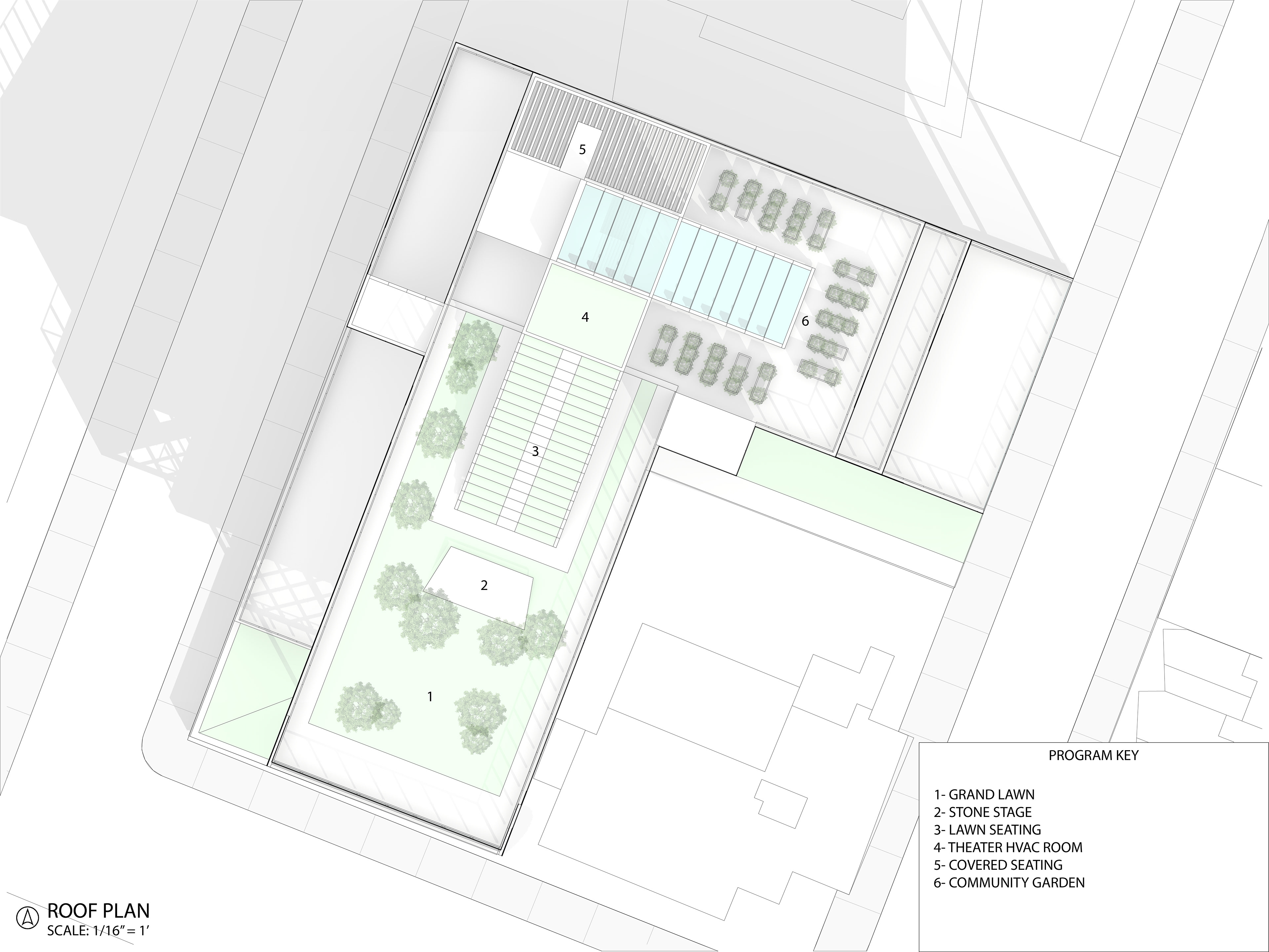

Roof Plan

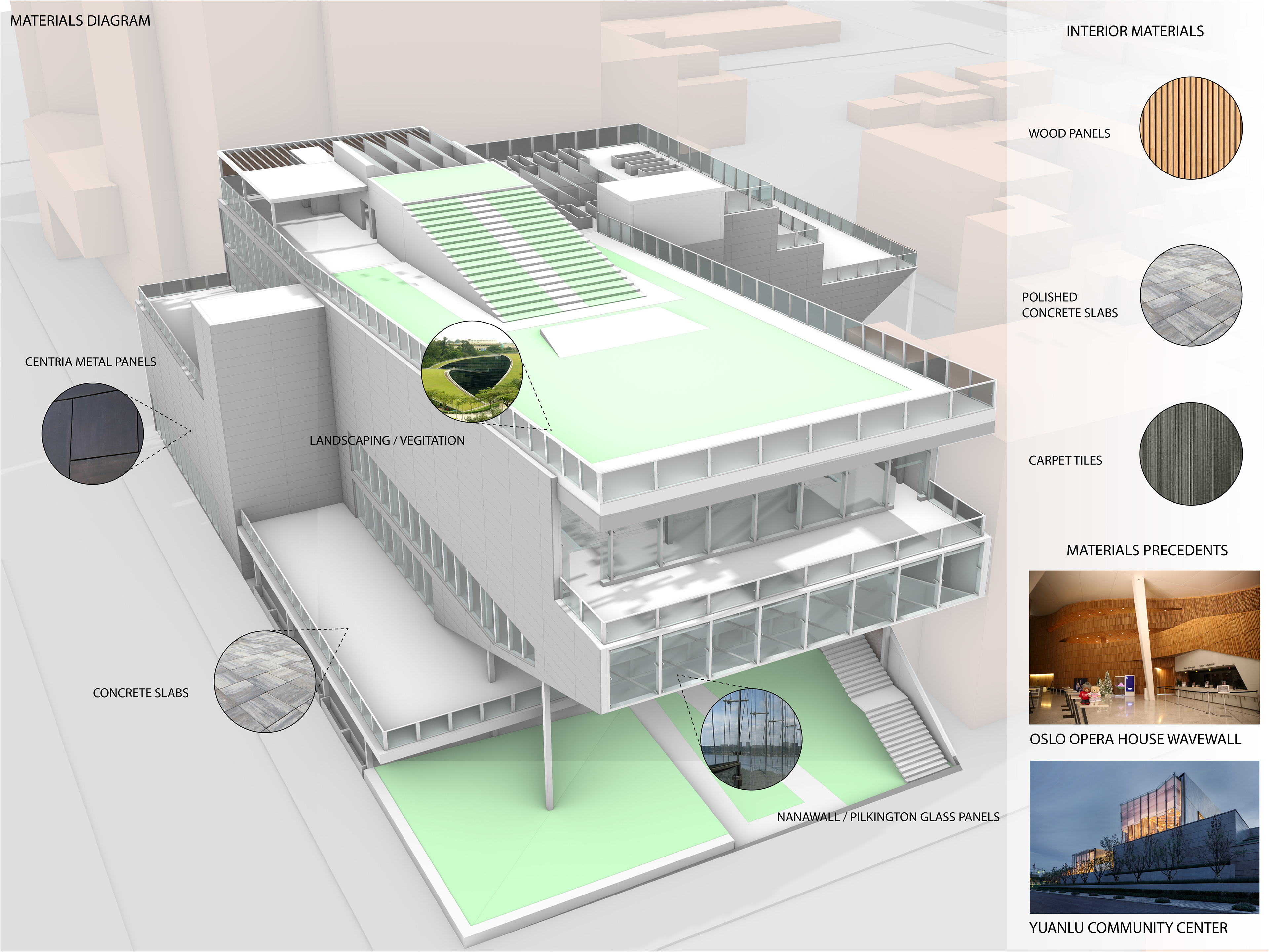

Material Diagram

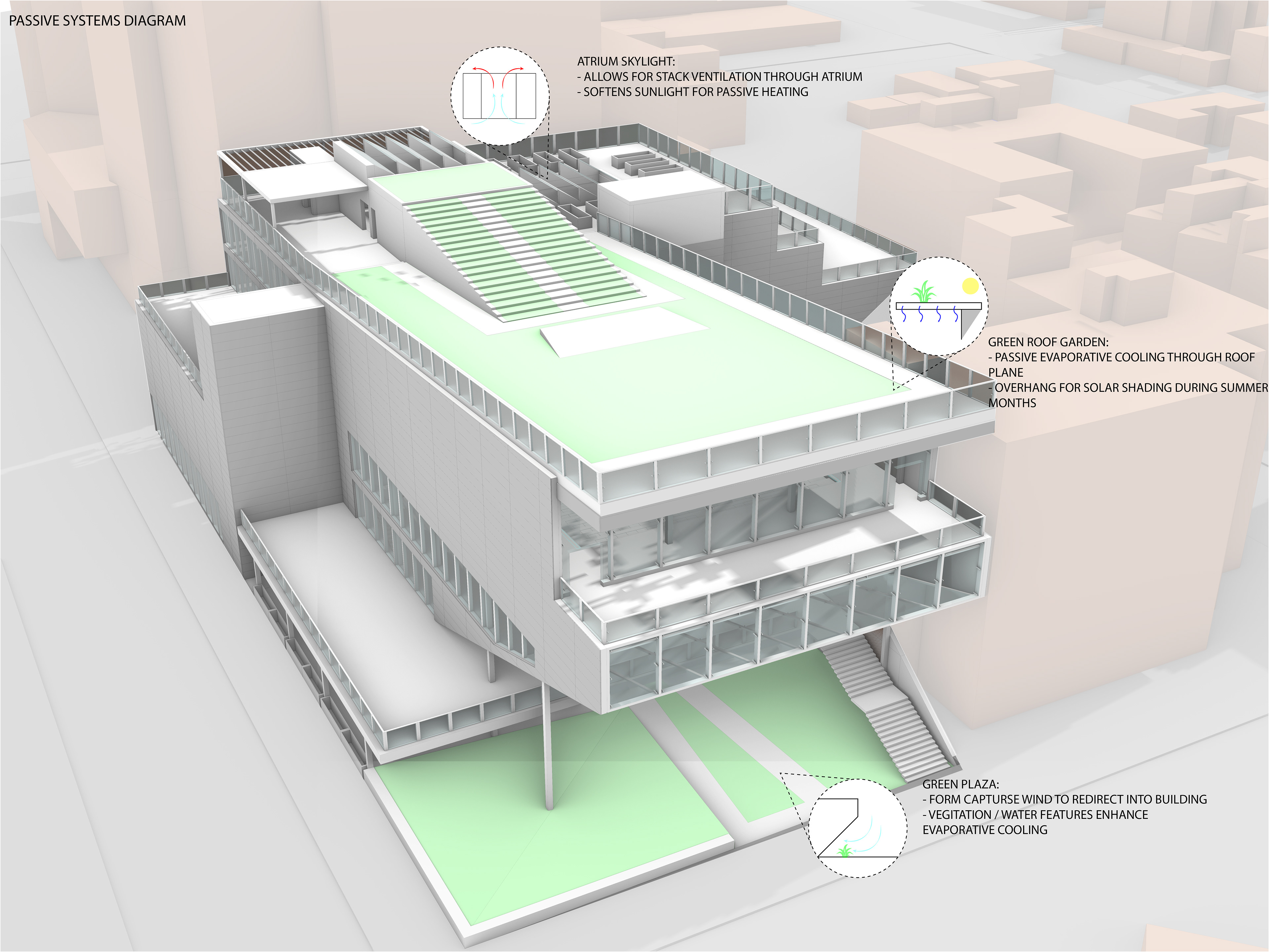

Passive Systems Diagram
Interior Rendering of Circulation Core
Roof Garden Rendering

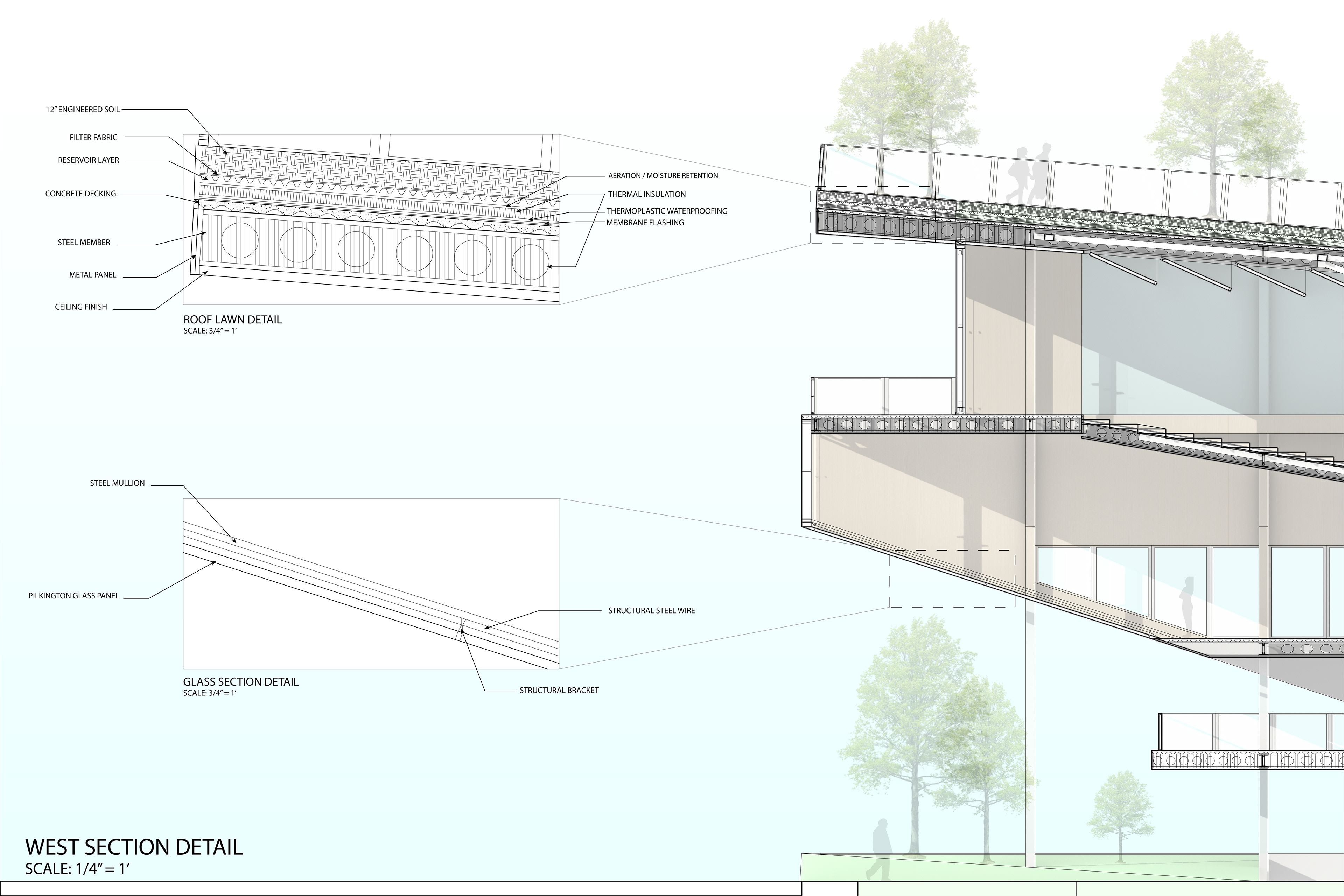

Section Detail

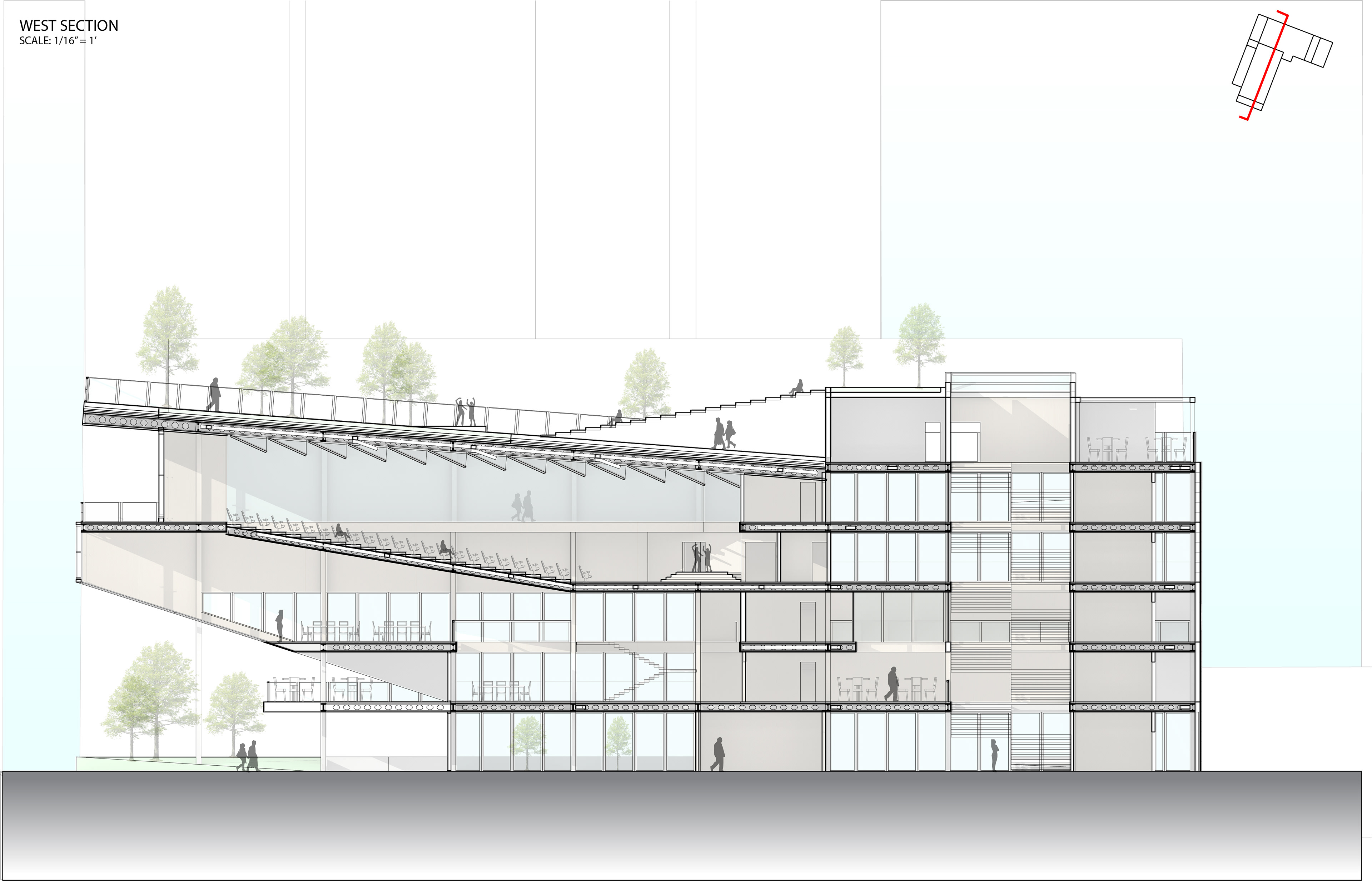

Section Facing West
Summer Rendering showing Open Walls
